Sun Power Security Gates, INC.
Sun-Power Security Gates come in many different designs. You can select from a design below or we can custom design a gate to meet your needs!
The primary power system for our gates is 12 Volt DC with an inline fuse protection. This power system is charged by a standard 120 VAC trickle charger or by a solar panel. This provides smooth consistent power to our gates, which along with our patented design provides a 6 to 8 second opening/closing time.
And for added safety our gates also have a manual release mechanism for finger touch opening, with optional 3 way Electrical key switch.

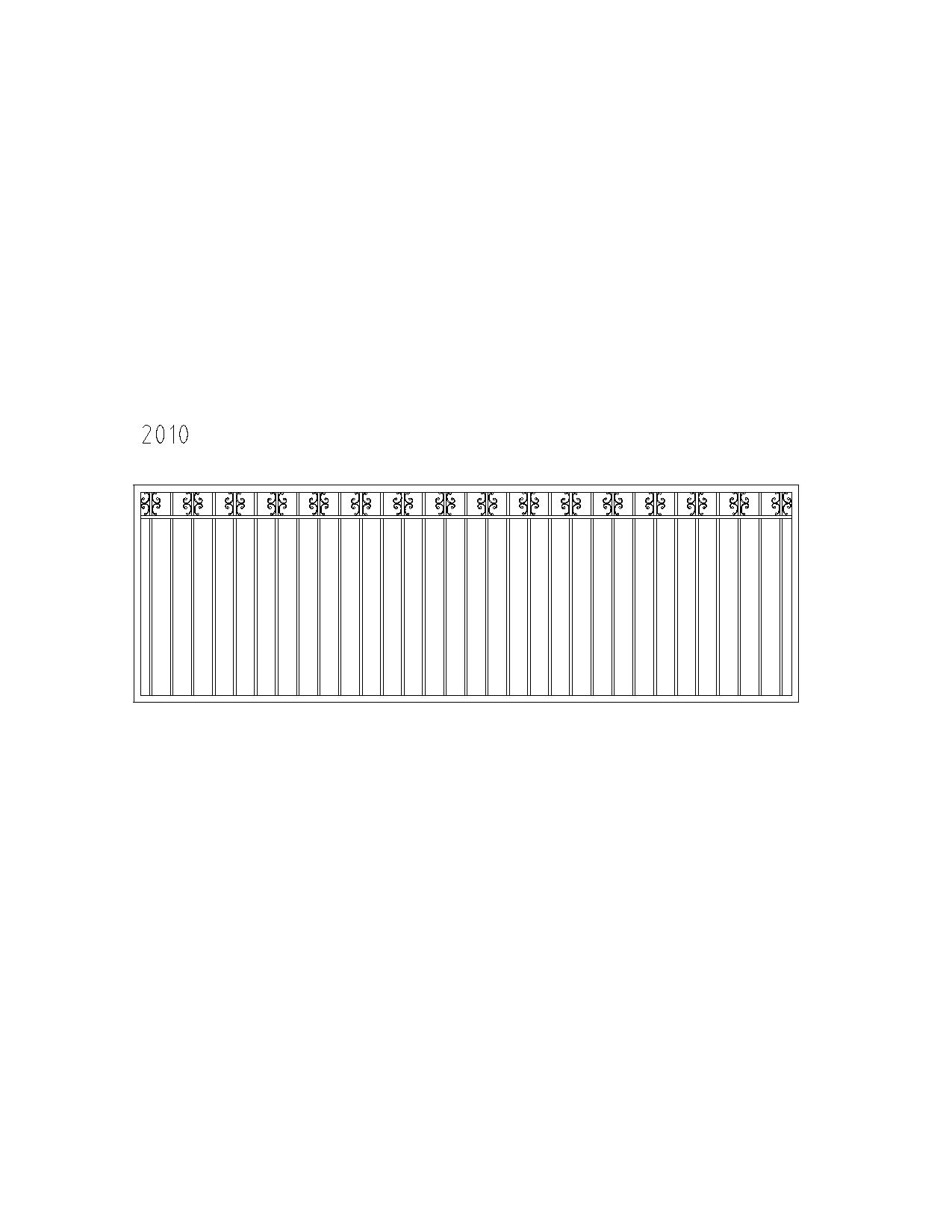

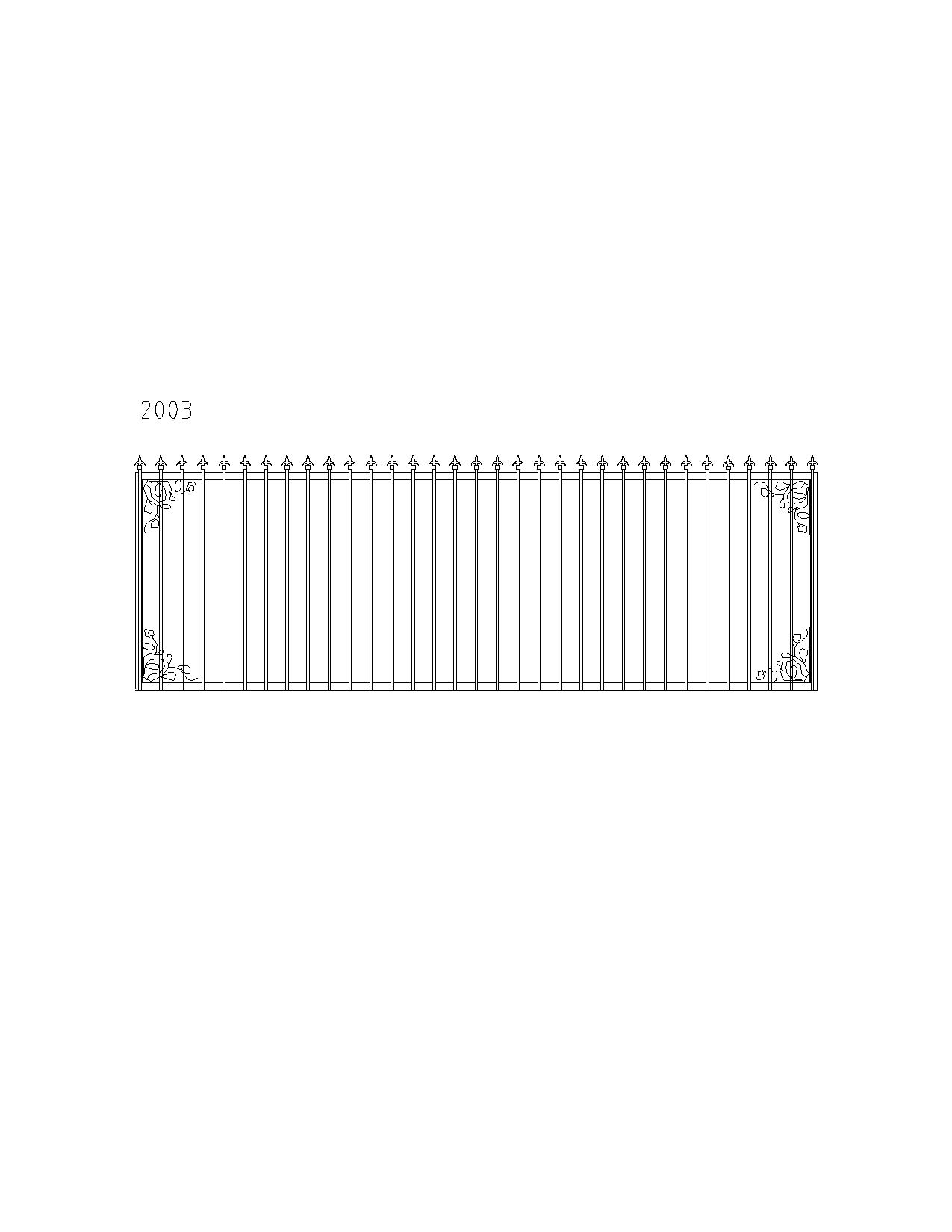

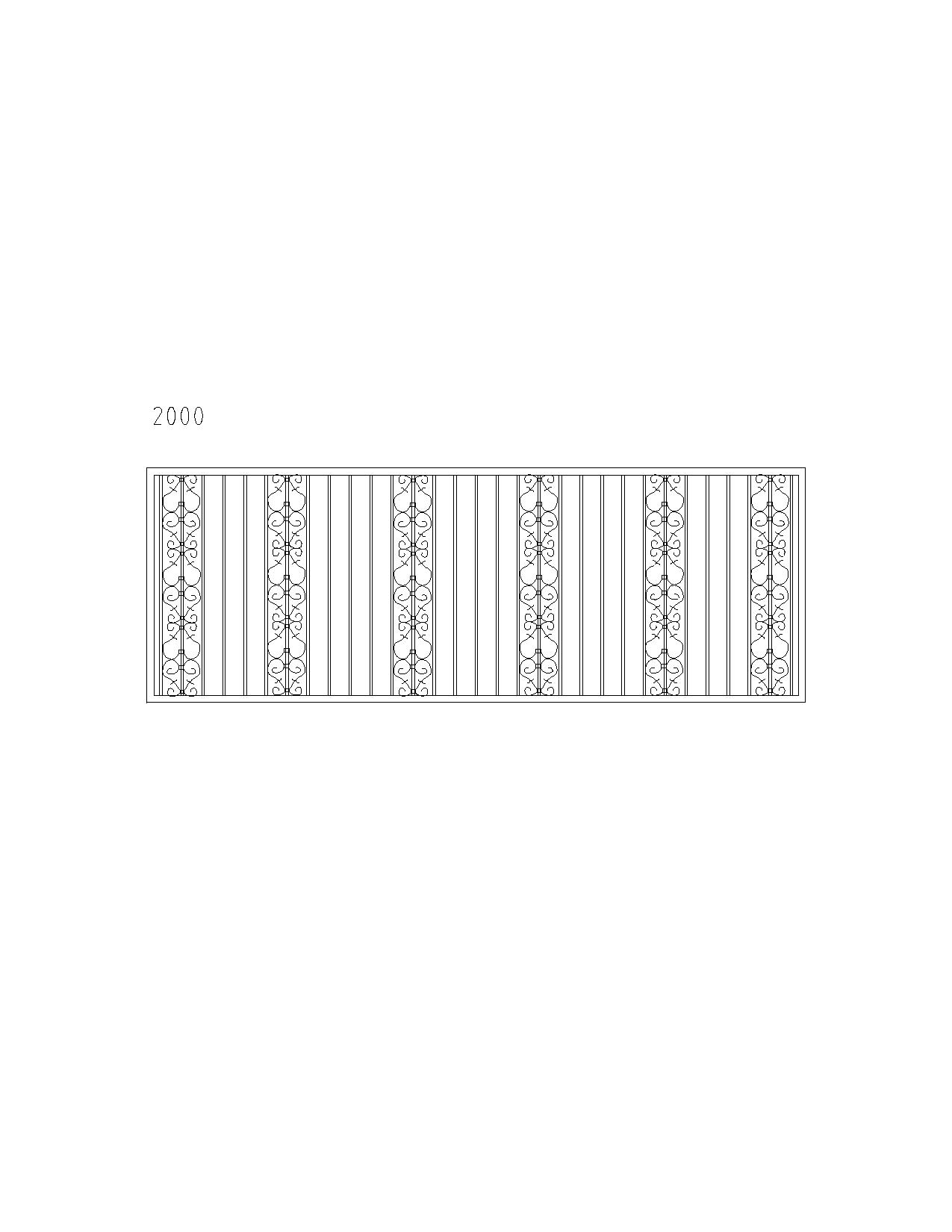

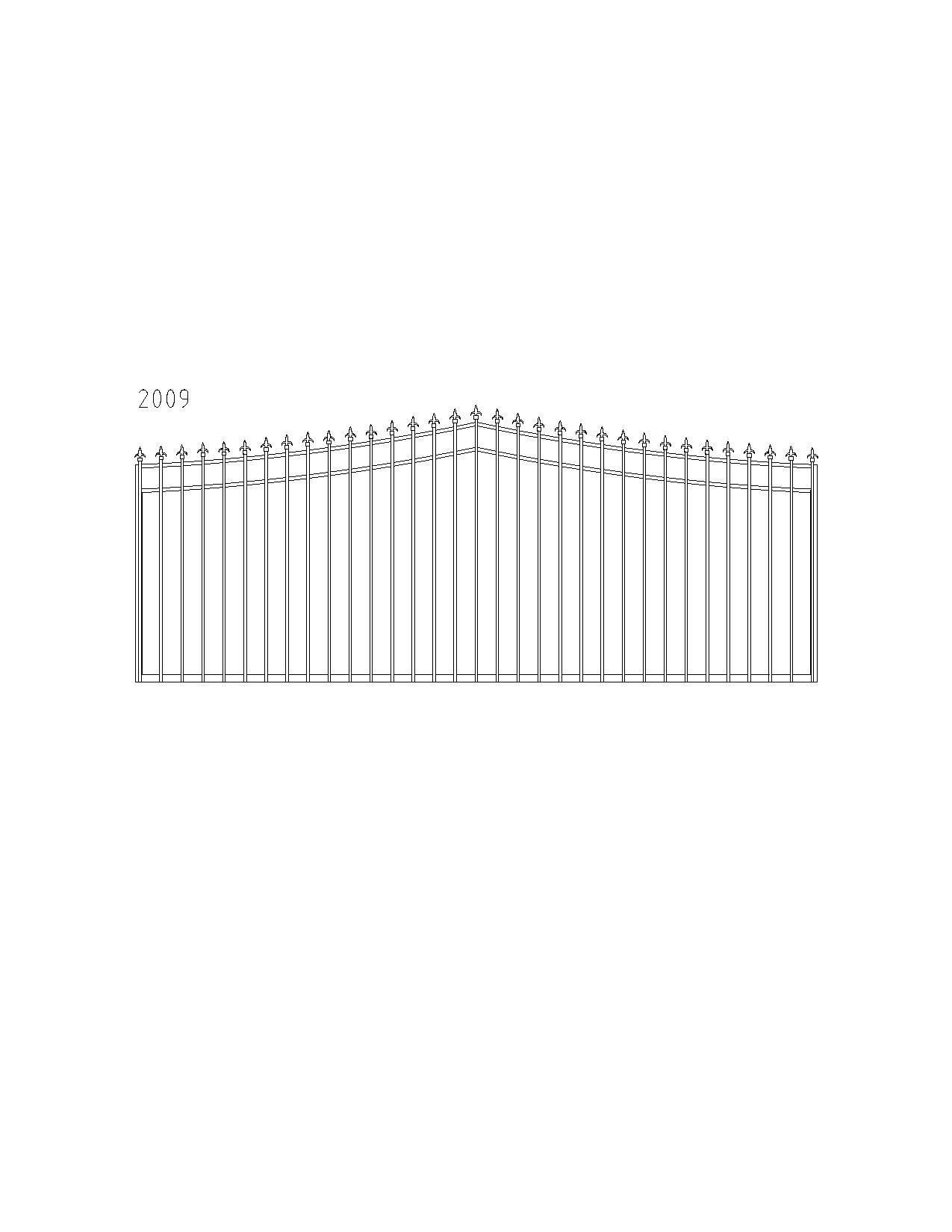

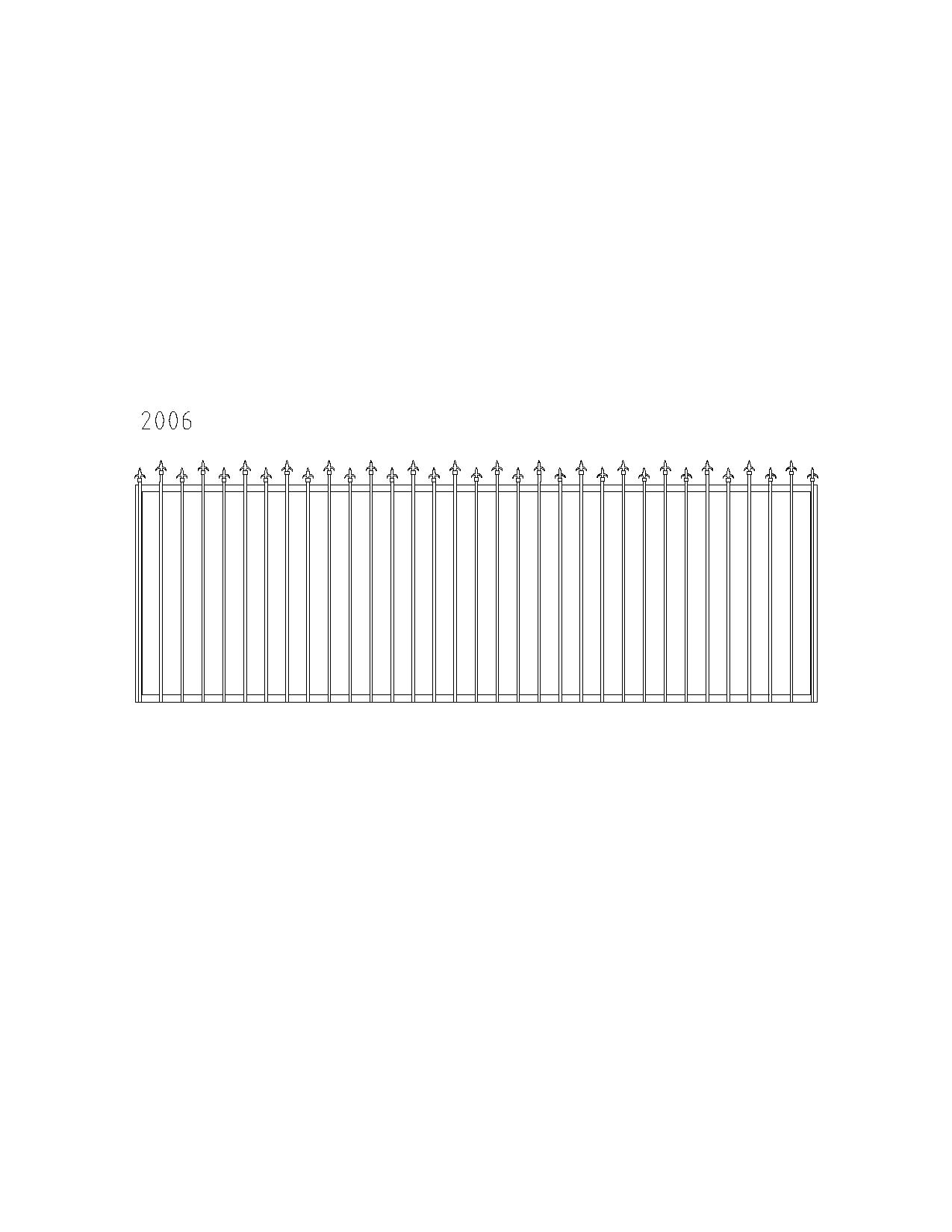

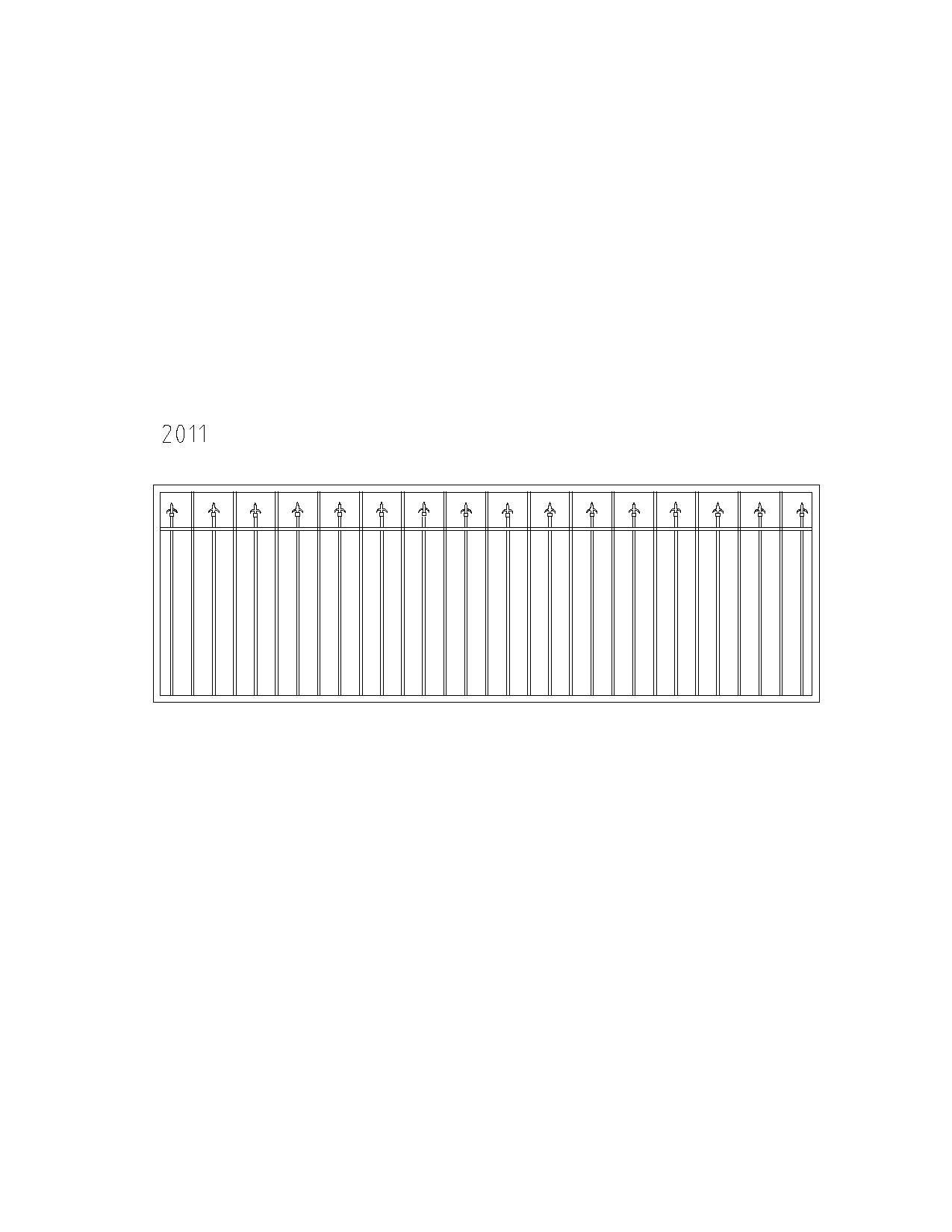

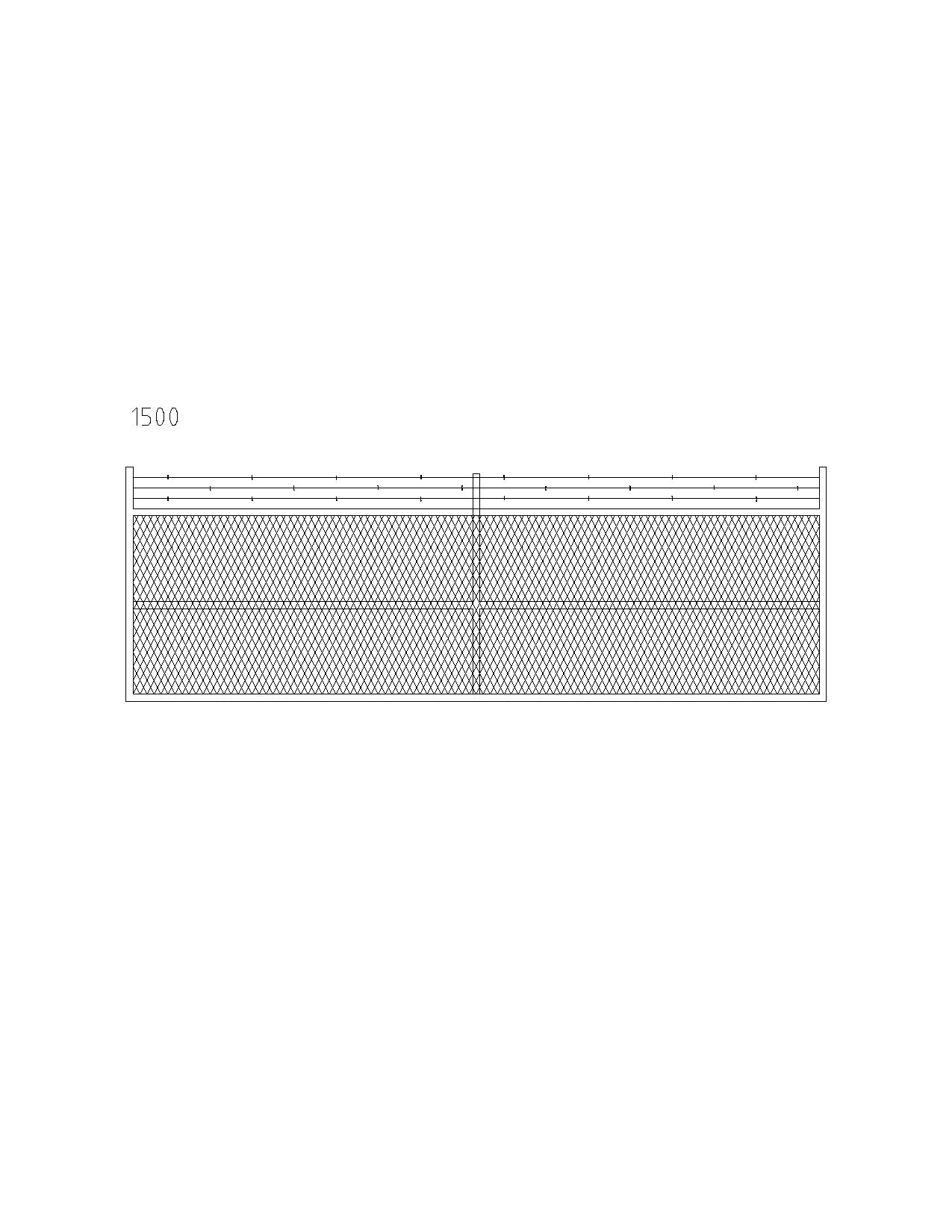

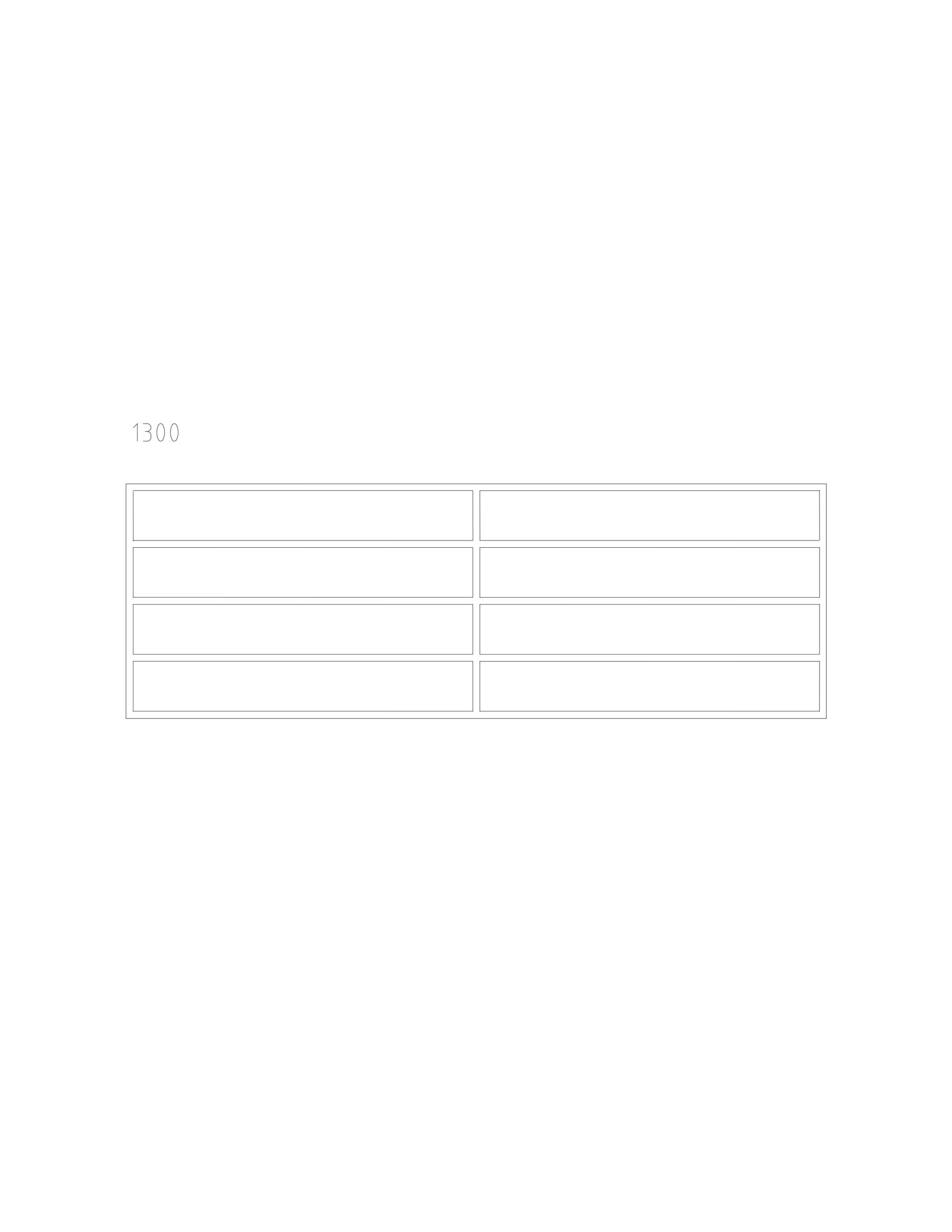

Gate Styles
The Barrier Arm is available on the Commercial C-50 unit and the Residential R-43 unit as a permanent unit with AC power and optional Solar Panel. The Barrier Arm is also available in its own solar charged portable unit which can me moved from site to site as needed.
Gate Construction
| Gate Name | Commercial | Commercial | Portable | Residential |
|---|---|---|---|---|
| Single Gate | Double Gate | Barrier Arm | Single Gate | |
 |  |  |
||
| Operator Frame | 2 x 2 x .065 | 2 x 2 x .065 | 2 x 2 x .065 | 2 x 2 x .065 |
| Cover | 20 guage | 20 guage | 20 guage | 20 guage |
| Pivot Post | 4 x 2 x 250 | 4 x 2 x 250 | 4 x 2 x 250 | 4 x 2 x 250 |
| Operator Width | 67" | 67" | 67" | 50" |
| Operator Height | 50" | 50" | 50" | 50" |
| Operator Depth | 26" | 30" | 26" | 26" |
| Maximum Gate Length | 20" | 20" | 20" | 16" |
| Maximum Gate Height | 7" | 7" | 4" | 5" |
Standard Features
| Gate Name | Commercial Single Gate | Commercial Double Gate | Portable Barrier Arm | Residential Single Gate |
|---|---|---|---|---|
| Portable Unit/Gate | No | No | Yes | No |
| LOOP DETECTOR | Yes | Yes | No | Yes |
| PHOTO BEAM | Yes | Yes | No | Yes |
| GATE / OPERATOR* | Yes | Yes | Yes | Yes |
| GATE STABILIZER YOKE | Yes | Yes | Yes | Yes |
| HOLD RELAY | Yes | Yes | Yes | Yes |
| MILLER EDGE | Yes | Yes | Yes | Yes |
| PUSH BUTTON CONTROL ON/OFF ON OPERATOR | Yes | Yes | Yes | Yes |
| RADIO RECEIVER 2 REMOTE CONTROLS | Yes | Yes | Yes | Yes |
| SIDE PANEL | Yes | Yes | Yes | Yes |
| TRICKLE CHARGER | Yes | Yes | Yes | Yes |
| WIND BRACE | Yes | Yes | Yes | Yes |
| 1/7 HP DC MOTOR | Yes | Yes | Yes | Yes |

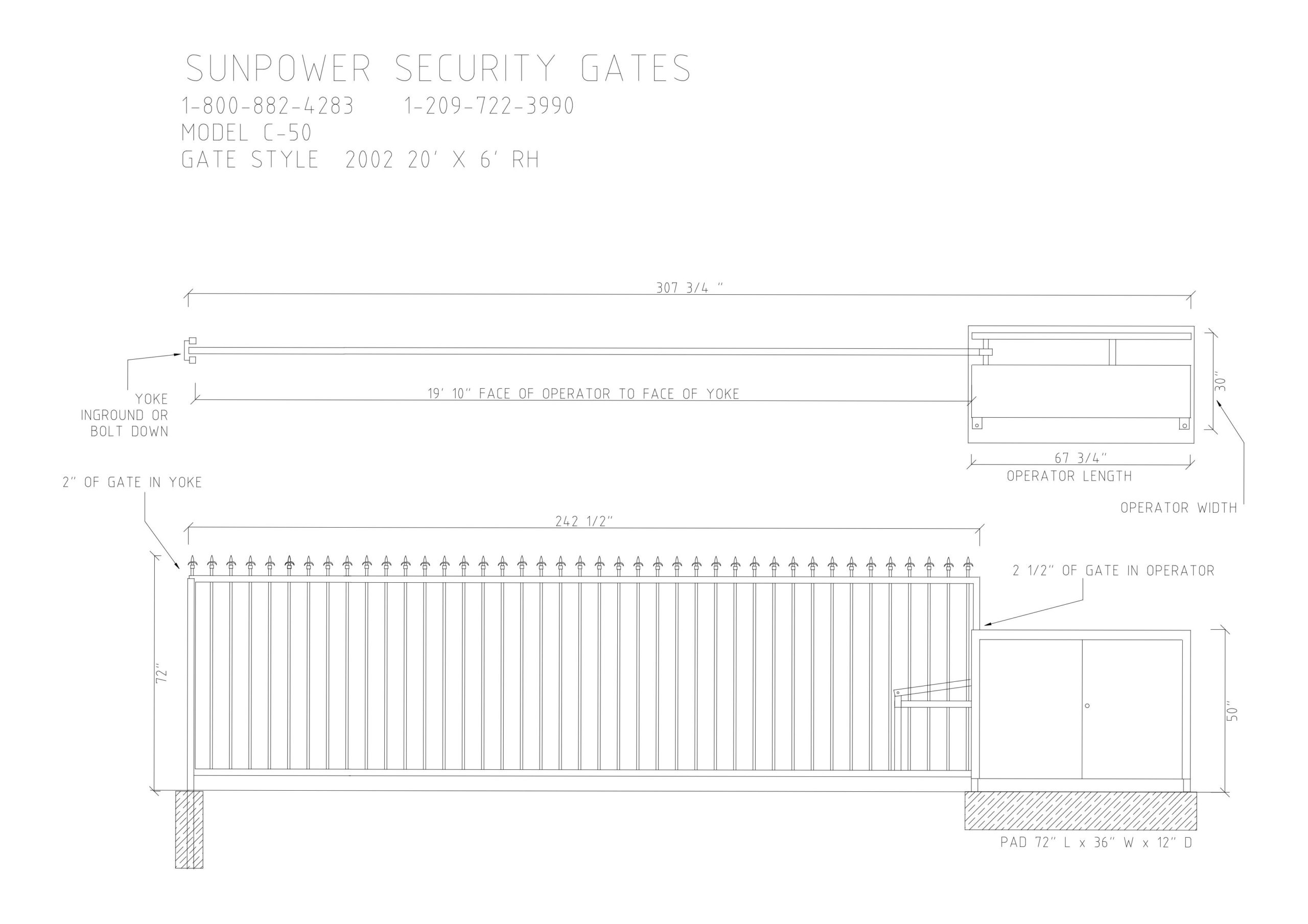

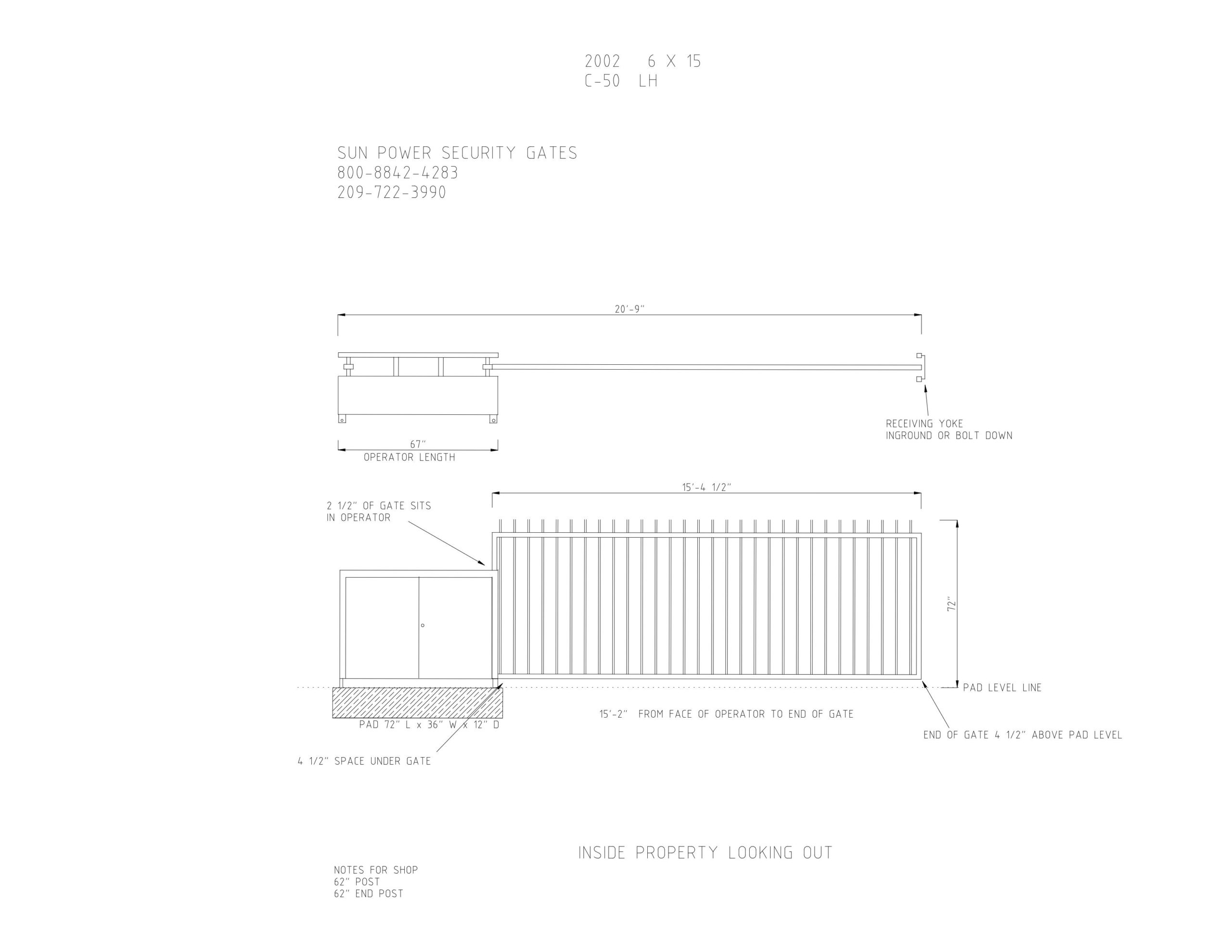

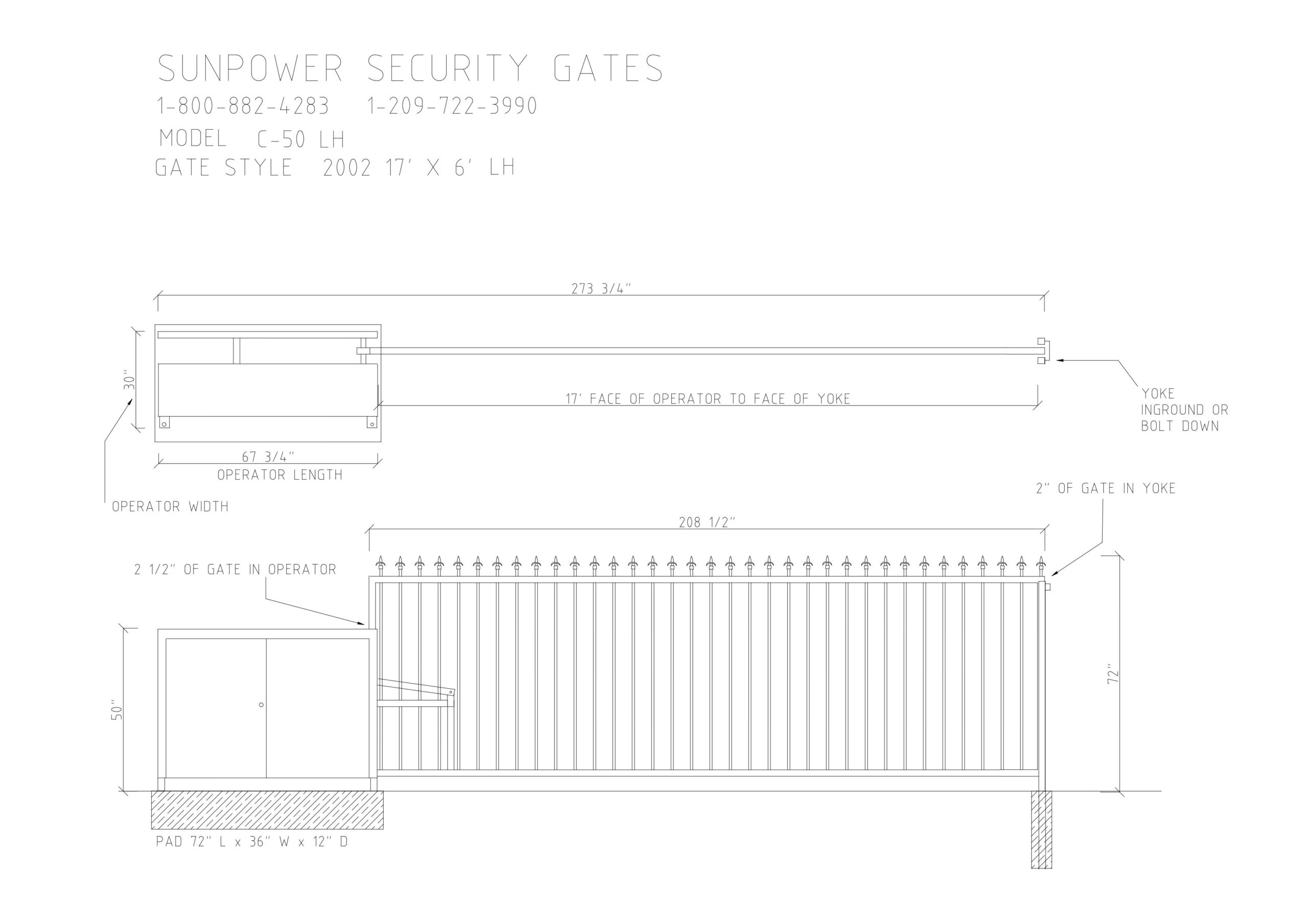

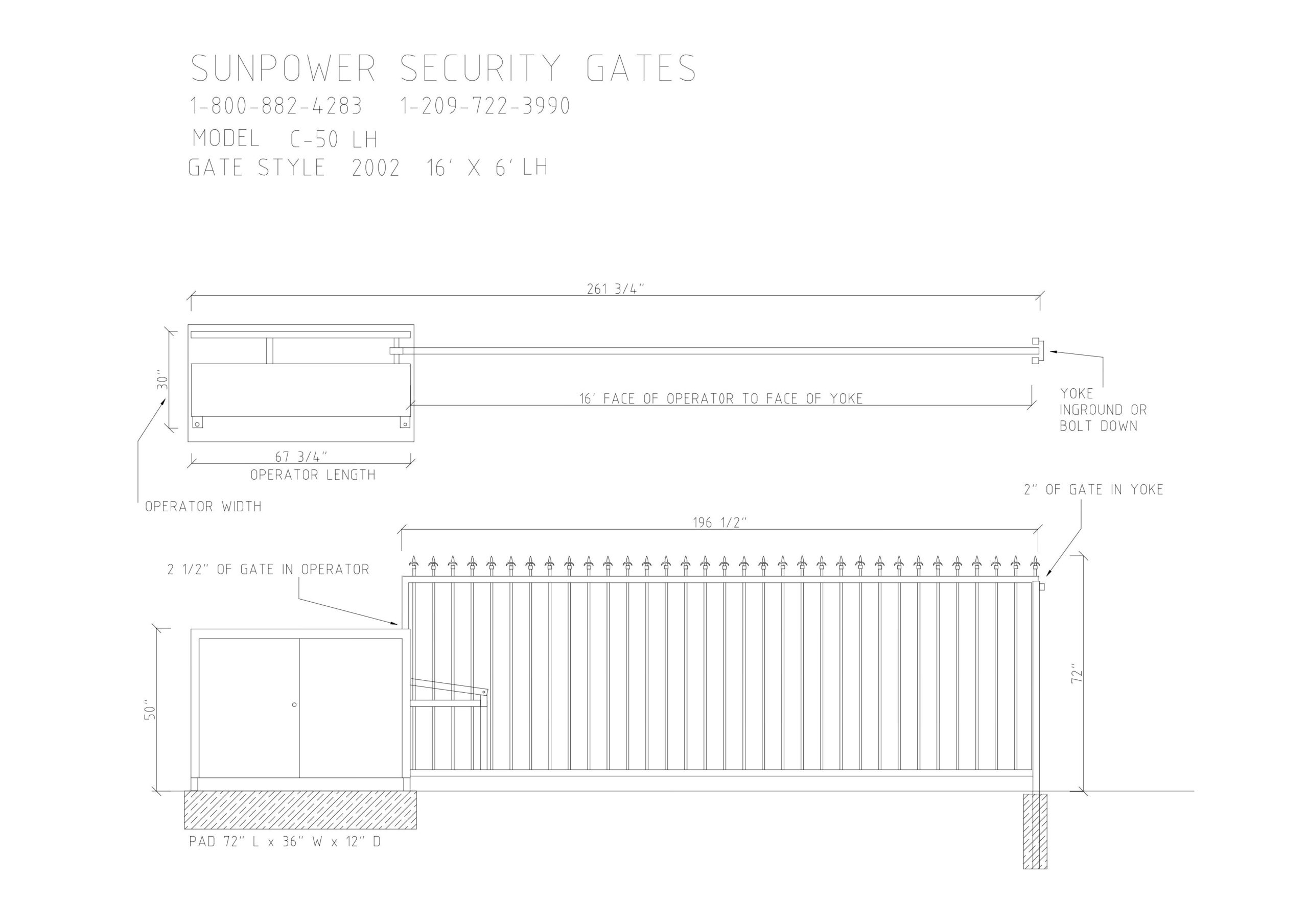

Gate Layout
